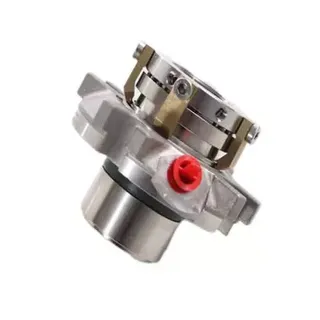

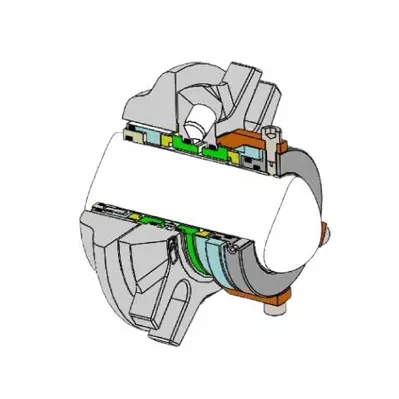

Advantage Seal Type AA04 Replaces:
AESSEAL CDP CDPN
Since the AA Series components are interchangeable, you can apply one seal family throughout your plant. This gives you the flexibility to cover more applications with less inventory, which means your maintenance is simplified, downtime is reduced, plant operating efficiency is increased and costs are lowered.
Balanced
Modular design- standardization of general parts, easy to reduce maintenance costs.
Small spring design- the spring does not contact with the medium, and the mechanical seal has a long service life.
The driving screw is directly positioned on the shaft or sleeve to minimize the driving loss.
Four bolts design, which can be applied to ISO 2858 standard pump type
The flushing scheme API 52/53/54 can be used.
Pressure：p1 = Vacuum (-28”Hg) to 20 Bar g (290 psig) - OD pr essurized only
Temperature：t = -40ºC to +180ºC [-40ºF to +356ºF]
Sliding velocity：vg = Upto 20 m/s (4000 ft/min)
All kinds of acidic, alkaline, low-grade slurry, water-oil and other media
Process pumps
Other rotating equipment
Mixer and agitators

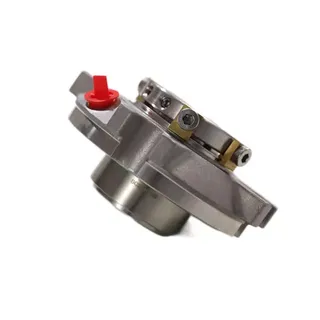

Type AA03

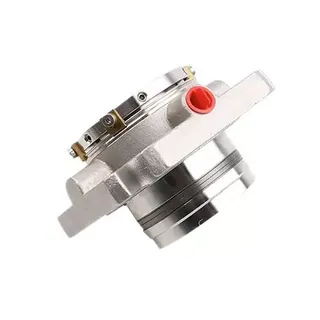

Type AA09
